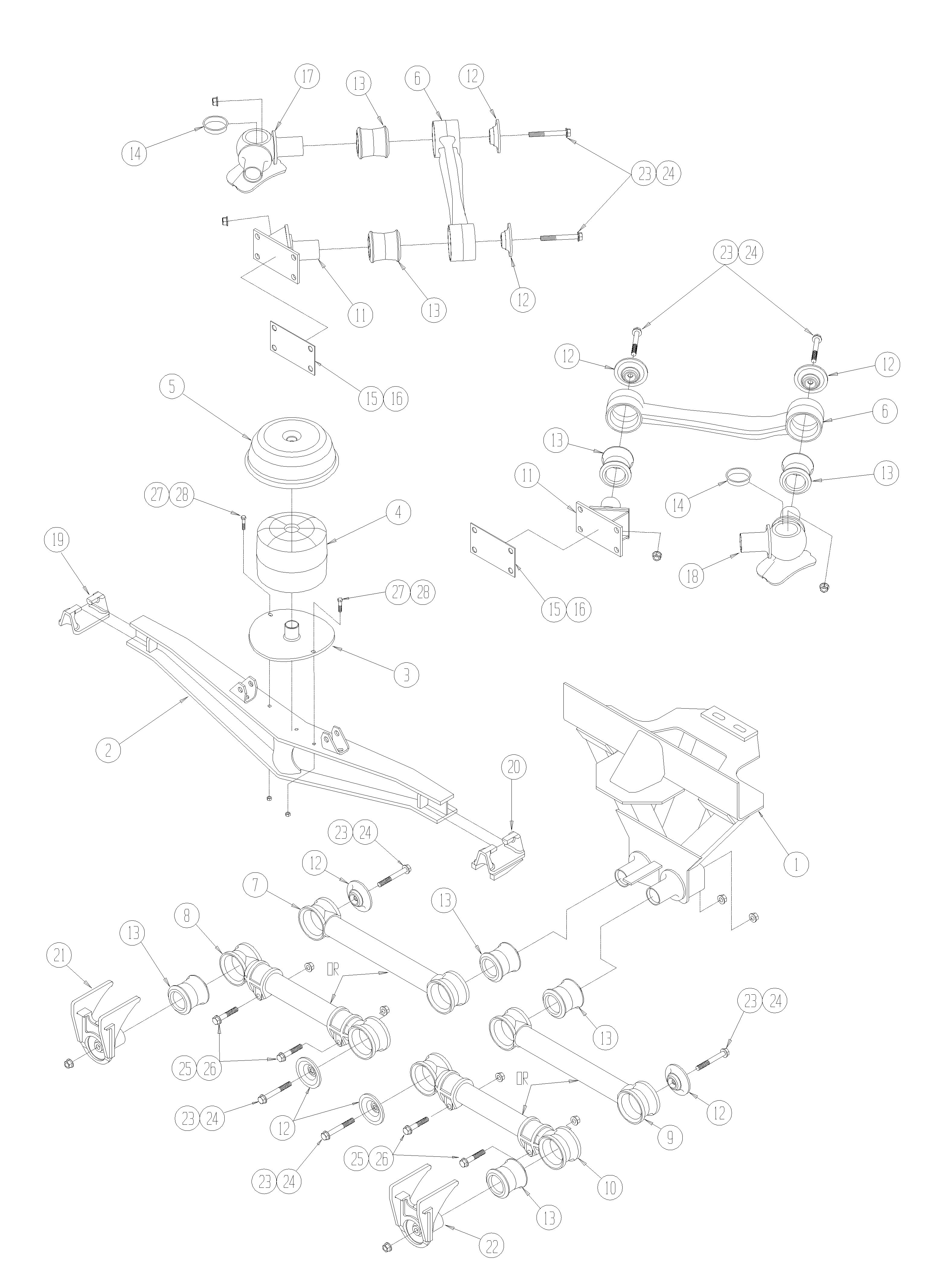

Part Identification

There are no products listed under this category.

ITEM PART NO. DESCRIPTION COMMENTS
1 800216 TRIANGULAR FRAME 46,000 LBS, BLANK
2 SEE BEAM TABLE BEAM
3 SEE BEAM TABLE BEAM SPRING PLATE
4 15002 #20 LOADGUARD SPRING
5 373028 #28 RESTRICTOR CAN STANDARD
373029 #29 RESTRICTOR CAN HIGH STABILITY
6 800049 UPPER TORQUE ROD 24 1/4” LONG CURVED
7 SEE TABLE LOWER TORQUE ROD
8 SEE TABLE LOWER TORQUE ROD
9 SEE TABLE LOWER TORQUE ROD
10 SEE TABLE LOWER TORQUE ROD
11 800057 UPPER FRAME BRACKET
800735 UPPER FRAME BRACKET WESTERN STAR
12 800055 SPIGOT CAP #2 JOINT
13 800010 BUSHING #2 JOINT STANDARD
800009 BUSHING #2 JOINT OVERSIZED/SERVICE
14 800230 TOWER PLUG
15 800056 SHIM 1/8” THICK
16 800143 SHIM 1/16” THICK
17 SEE AXLE BRACKET TABLE TOWER FORWARD AXLE
18 SEE AXLE BRACKET TABLE TOWER REAR AXLE
19 SEE AXLE BRACKET TABLE SADDLE LHF/RHR
20 SEE AXLE BRACKET TABLE SADDLE RHF/LHR
21 SEE AXLE BRACKET TABLE TORQUE ROD AXLE BRKT LHF/RHR
22 SEE AXLE BRACKET TABLE TORQUE ROD AXLE BRKT RHF/LHR
23 HDW 382 5/8” NC X 5.5”LG BOLT HARDWARE KIT
24 HDW 379 5/8” NC LOCKNUT HARDWARE KIT
25 HDW 380 5/8” NC X 3.5” LG BOLT SUPPLIED WITH T/ROD
26 HDW 379 5/8” NC LOCKNUT SUPPLIED WITH T/ROD
27 HDW 361 3/8” NC X 1.75” LG BOLT HARDWARE KIT
28 HDW 333 3/8” NC LOCKNUT HARDWARE KIT

BEAM SP PLATE
BEAM PART NO SPRING PLATE PART NO BEAM CAPACITY AXLE SPREAD MOUNTING HEIGHT
800087 800691 46,000 LBS 54” LOW
800061 800689 46,000 LBS 54” HIGH
800083 800687 46,000 LBS 60” LOW
800111 800685 46,000 LBS 60” HIGH
800202 800685 46,000 LBS 72” LOW
800029 04S00086 46,000 LBS 72” HIGH

TOWER
FORWARD TOWER REAR TOWER AXLE MODEL
800321 800322 DANA; 380,400,401,404,405,440,451,454,460,462,463
521, D52-190*, DSH 40/44, DSP 40/41
MERITOR; RT 40-140, RT 44-145
800342 800302 DANA; D40-170, D46-170, D52-190†
MERITOR; RT 52-160, RT 52-180, RT 58-180
SQ100,SQR100,SQHP,ST170,SU170
800757 800758 MERITOR; RT 46-160, RT 50-160

AXLE BRACKET
LHF/RHR BRACKET RHF/LHR BRACKET AXLE MODEL
800534 800533 MERITOR; RT 52-160, RT 52-180, RT 58-180, SU170, ST170
800537 481577 MERITOR; RT 46-160, RT 50-160
800537 800540 DANA; 462,463
800537 800774 MERITOR; RT 40-145, RT 44-145
800537 03S00604 DANA; D40-170, D46-170
800540 800540 SPICER; G400S, M460S
800774 800774 DANA; 404,405, 454, DSH 40/44, DSP 40/41
800796 800794 DANA; 521, D52-190
LHF/RHR – LEFT HAND FRONT/ RIGHT HAND REAR
RHF/LHR – RIGHT HAND FRONT/ LEFT HAND REAR
